Truck UnitTR5

Designed for Truck Applications

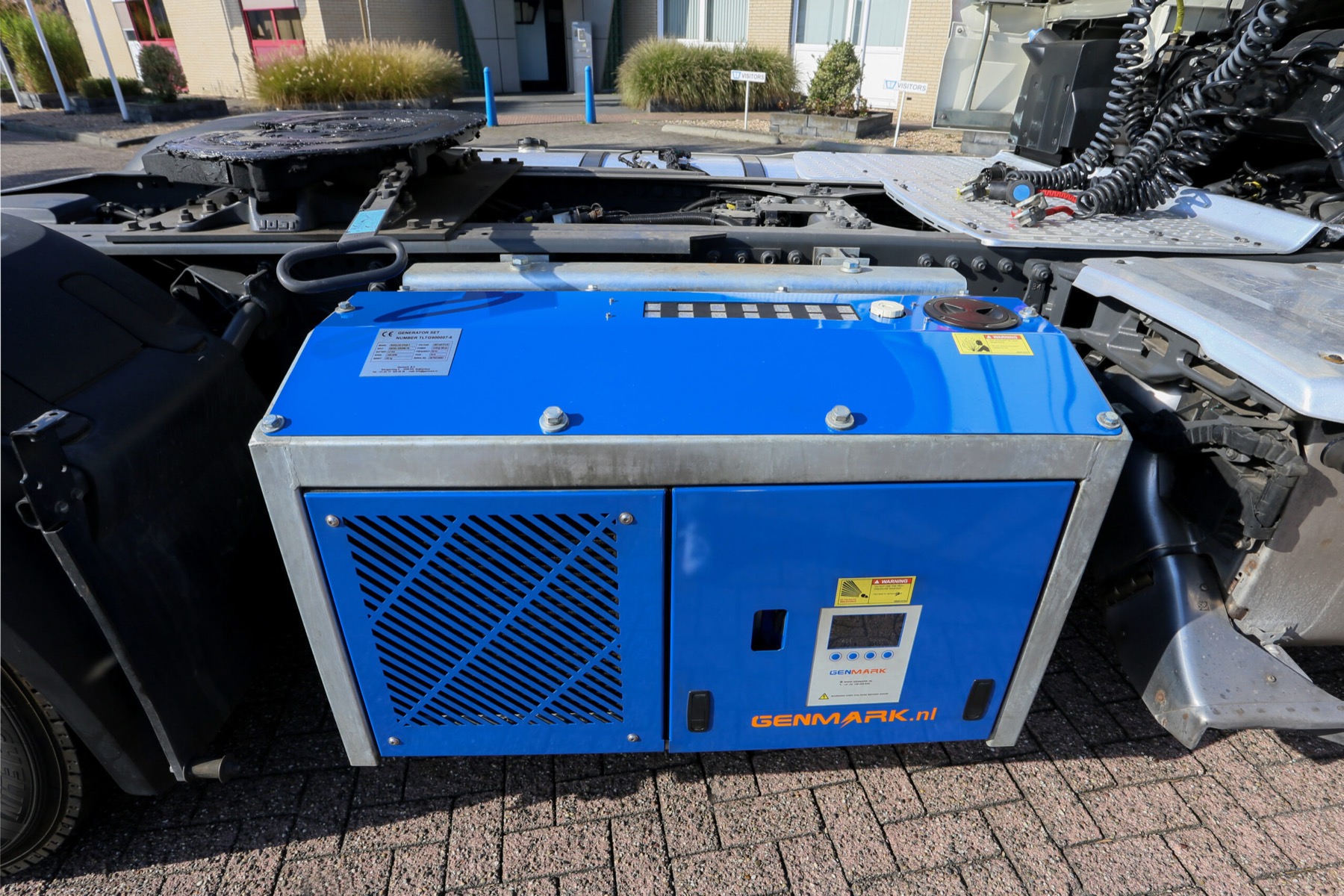

Whenever you have to change chassis regularly while your truck is not, our Genmark Truck Unit can be the solution. The TR5 unit is mounted on your truck and connected to the truck's fuel tank. A great advantage is that the unit can run independently from the truck. This can save a lot of fuel in situations where the truck is not driving but generating electricity is still required.

18,75 kVAPower @ 1500 rpm

460 kgWeight

1000 hService interval

Request a quotation Financial lease

Swipe the genset

Truck Unit TR5

Specifications Why TR5 Gallery Other gensets

Request quotation

Technical specifications

Truck Unit TR5 in numbers

Every Genmark genset is built around the same proven core: a certified Yanmar Stage V engine, a 24 kW RFL permanent magnet alternator and our in-house designed controller.

Download brochureTruck Unit TR5 · English · PDF

Engine type + size	Yanmar 4TNV88-BIGV (Stage V)2.286 liter
Outer dimensions	L 114 / 44 × W 59 / 23 × H 67 / 26cm / inch
Battery	12V 74AhCold: 680 EN
Certification	EMC, Lateral protection, Stage V
Oil capacity	13,3 liter (max)
Average fuel consumption	2,20 liter per hour @ 380V/50Hz output1,14 liter per hour when idle
Power	18,75 kVA @ 1500 RPM24 kW alternator · 50 Hz
Weight	460 kg / 1.014 lb

DAF
MAN
Mercedes-Benz
Scania
Volvo

Your chassis or truck not listed? Use the configurator or contact our sales department, we can meet almost every demand.

Truck Unit TR5 brochureEnglish · PDF

Designed for Truck Applications

The most compact unit available

The Genmark Truck Unit is easily mounted on every type of truck available. It is highly compact, fuel efficient and easy to operate.

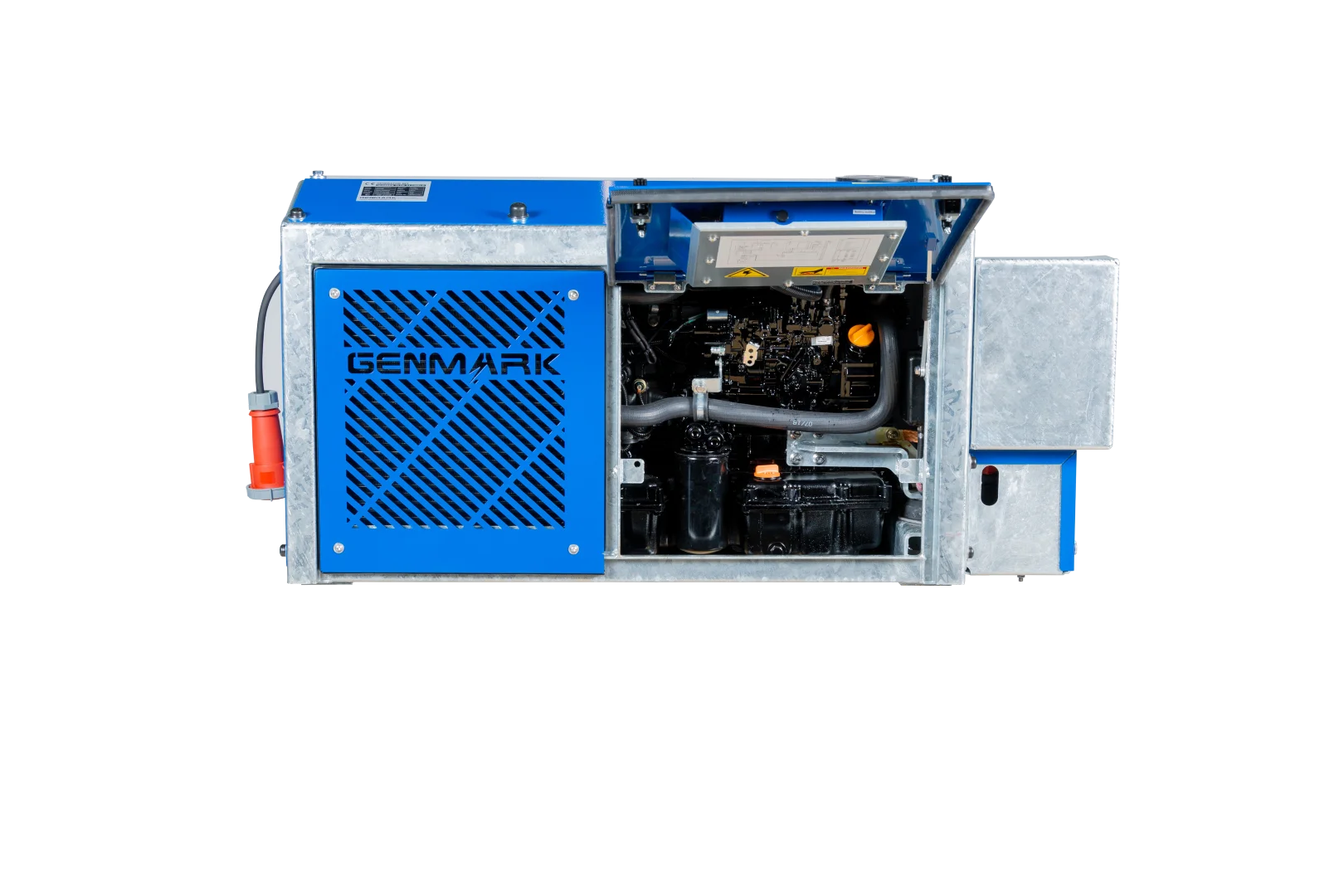

Thanks to the increased oil sump, containing 13,5 litres of oil (15W40), the maintenance interval is reduced to once every 1.000 hours, or once a year. The unit is designed in a way that the full service can be done without dismounting the unit from the chassis. The 4-cylinder Yanmar engine provides 18,9 kW which is equal to 25,7 hp at 1.500 rpm or 50 Hz, making our unit Stage 5 compliant.

Request a quotation Read about the technology
