ModularMS5

Designed for Flexible Chassis

The Genmark Modular MS5 is designed for flexible (sliding) chassis where space is tight. Its compact modular design fits the D-TEC Flexitrailer S-Line, Pacton Flex, Krone Box Liner TU70, Broshuis MFCC-HD and Kässbohrer chassis, and the full service can be done without dismounting the unit from the chassis.

18,75 kVAPower @ 1500 rpm

476 kgWeight

1000 hService interval

Request a quotation Financial lease

Swipe the genset

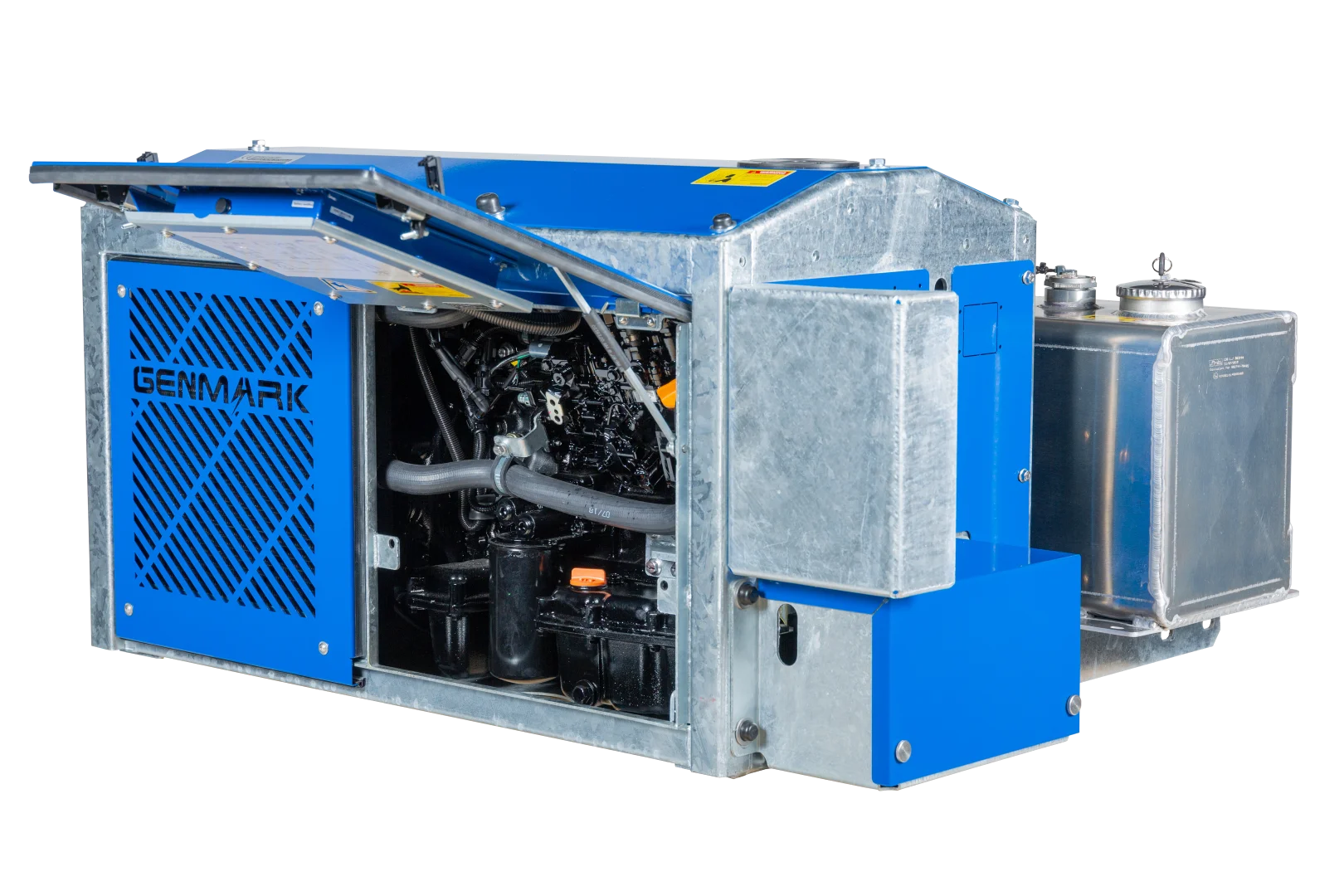

Modular MS5

Specifications Why MS5 Gallery Other gensets

Request quotation

Technical specifications

Modular MS5 in numbers

Every Genmark genset is built around the same proven core: a certified Yanmar Stage V engine, a 24 kW RFL permanent magnet alternator and our in-house designed controller.

Download brochureModular MS5 · English · PDF

Engine type + size	Yanmar 4TNV88-BIGV (Stage V)2.286 liter
Outer dimensions	L 114 / 44 × W 102 / 40 × H 67 / 26cm / inch
Battery	12V 74AhCold: 680 EN
Certification	EMC, Lateral protection, Stage V
Oil capacity	13,3 liter (max)
Average fuel consumption	2,20 liter per hour @ 380V/50Hz output1,14 liter per hour when idle
Power	18,75 kVA @ 1500 RPM24 kW alternator · 50 Hz
Weight	476 kg / 1.049 lb

D-TEC Flexitrailer S-Line
Pacton Flex
Krone Box Liner TU70
Broshuis MFCC-HD
Kässbohrer

Your chassis or truck not listed? Use the configurator or contact our sales department, we can meet almost every demand.

Modular MS5 brochureEnglish · PDF

Designed for Flexible Chassis

The most innovating unit available

Thanks to the increased oil sump, containing 13,5 litres of oil (15W40), the maintenance interval is reduced to once every 1.000 hours, or once a year. The unit is designed in a way that the full service can be done without dismounting the unit from the chassis. The 4-cylinder Yanmar engine provides 18,9 kW which is equal to 25,7 hp at 1.500 rpm or 50 Hz, making our unit Stage 5 compliant.

We keep in close touch with major chassis manufacturers. This way we can guarantee minimum height, safety and the most efficient way of mounting your genset.

Request a quotation Read about the technology
