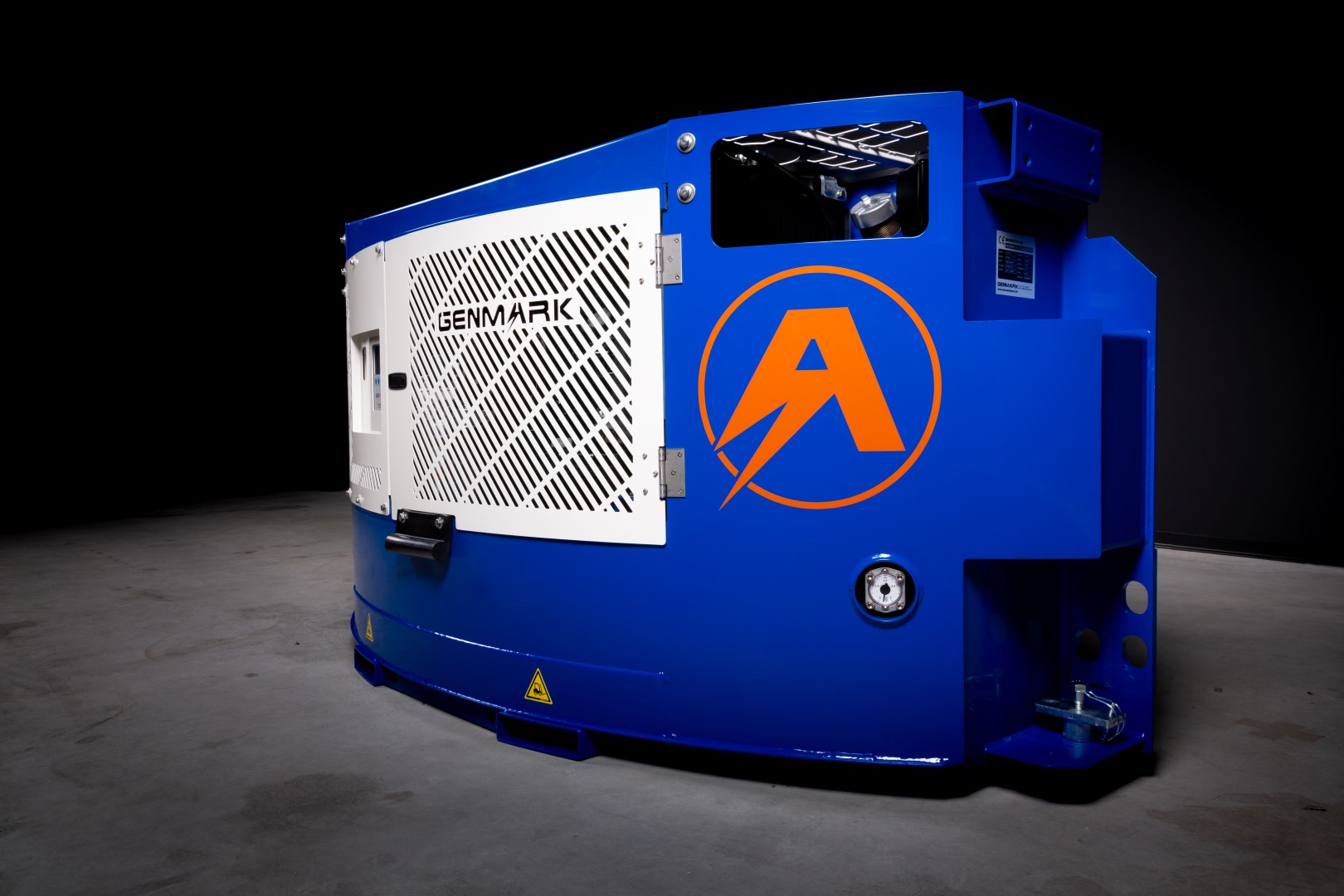

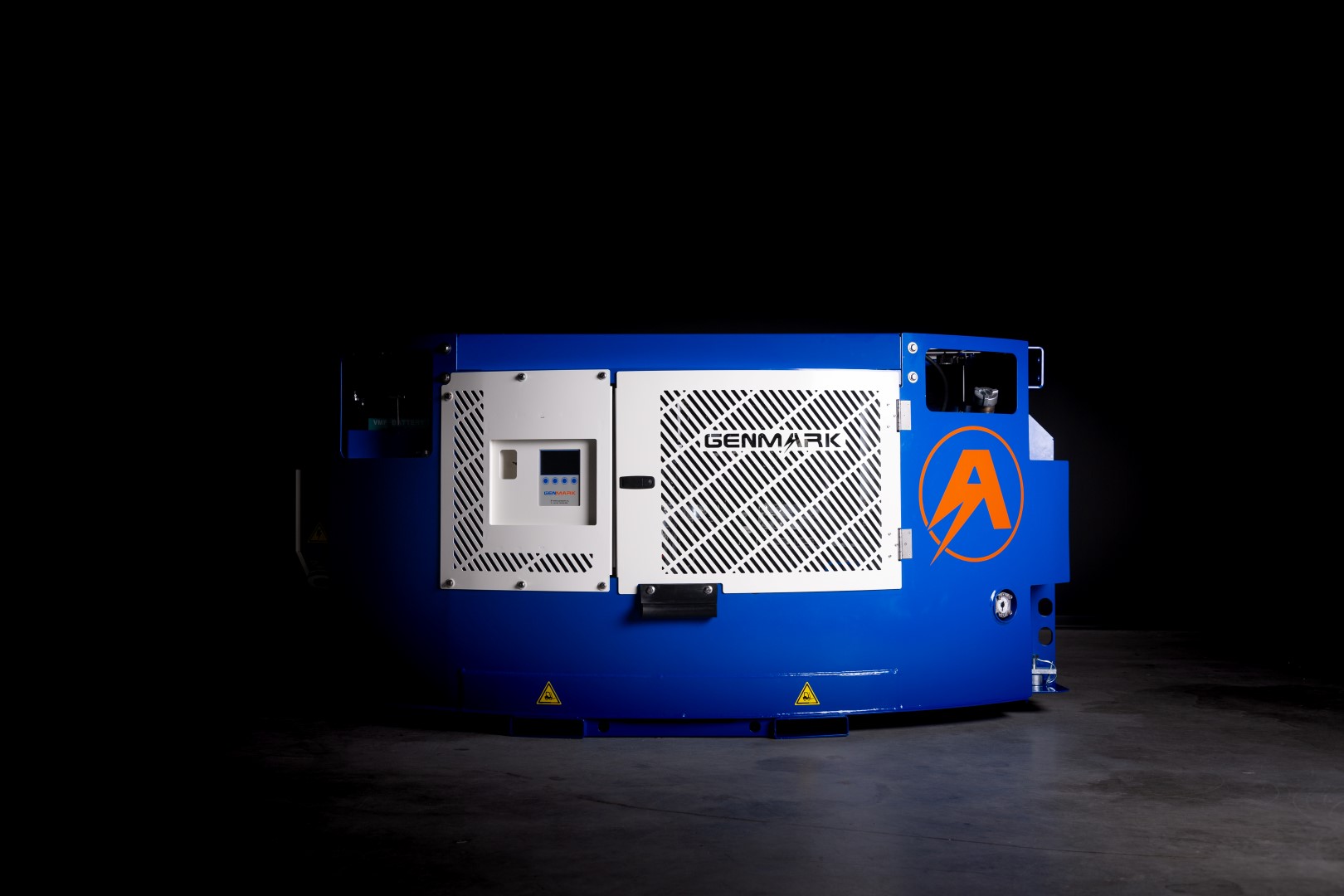

Clip-onGC5

Designed for Container Applications

The Genmark Clip-on Genset is designed for easy mounting directly on your (reefer) container. It has a standard pin mount system however it can also be supplied with clamp mounting, often used with tank containers. Due to the low fuel consumption and large fuel tank our Clip-on unit ensures a maximum amount of operating hours. With a Tier4F and CARB compliant engine, the Genmark Clip-on genset will also be available for the USA market.

18,75 kVAPower @ 1500 rpm

725 kgWeight

1000 hService interval

Request a quotation Financial lease

Swipe the genset

Clip-on GC5

Specifications Why GC5 Gallery Video Other gensets

Request quotation

Technical specifications

Clip-on GC5 in numbers

Every Genmark genset is built around the same proven core: a certified Yanmar Stage V engine, a 24 kW RFL permanent magnet alternator and our in-house designed controller.

Download brochureClip-on GC5 · English · PDF

Engine type + size	Yanmar 4TNV88-BIGV (Stage V)2.286 liter
Outer dimensions	L 233 / 91 × W 81 / 32 × H 109 / 43cm / inch
Battery	12V 74AhCold: 680 EN
Certification	EMC, Stage V
Oil capacity	13,3 liter (max)
Average fuel consumption	2,20 liter per hour @ 380V/50Hz output1,14 liter per hour when idle
Power	18,75 kVA @ 1500 RPM24 kW alternator · 50 Hz
Weight	725 kg / 1.598 lb

Pin mount (standard)
Clamp mount (tank containers)

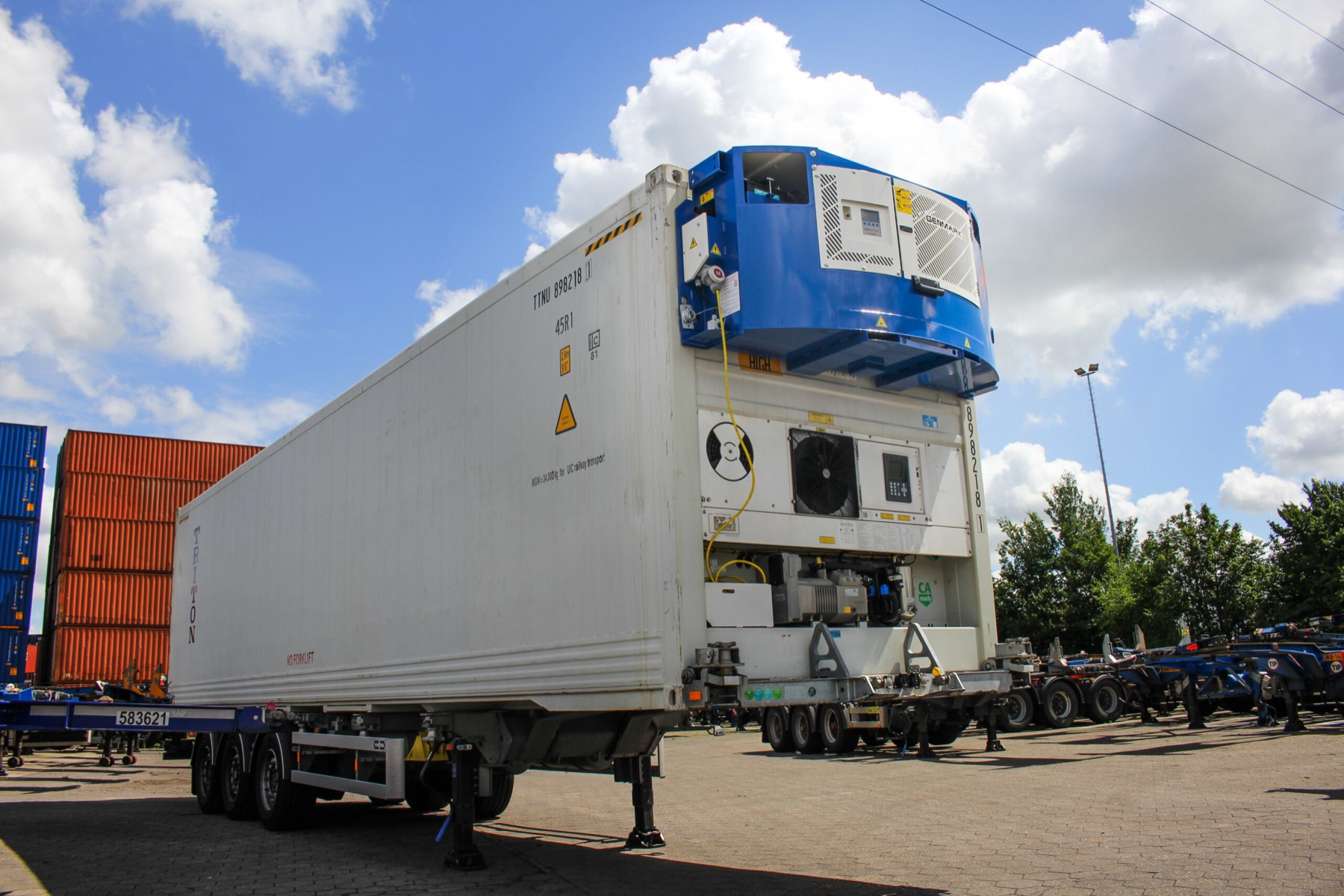

Reefer containers
Tank containers
Train carriages
Container chassis

Your chassis or truck not listed? Use the configurator or contact our sales department, we can meet almost every demand.

Clip-on GC5 brochureEnglish · PDF

Designed for Container Applications

Easy to use, built to last

A Clip-on unit can often be exposed to high G-forces and is tested extensively on vibrations. When for example a unit is mounted on a container or chassis, when the unit is used on train carriages or when road conditions are bad, the unit is exposed to side shifts and heavy vibrations. The Genmark Clip-on unit is designed to handle all these extreme forces. The Genmark Clip-on is built to last for years to come!

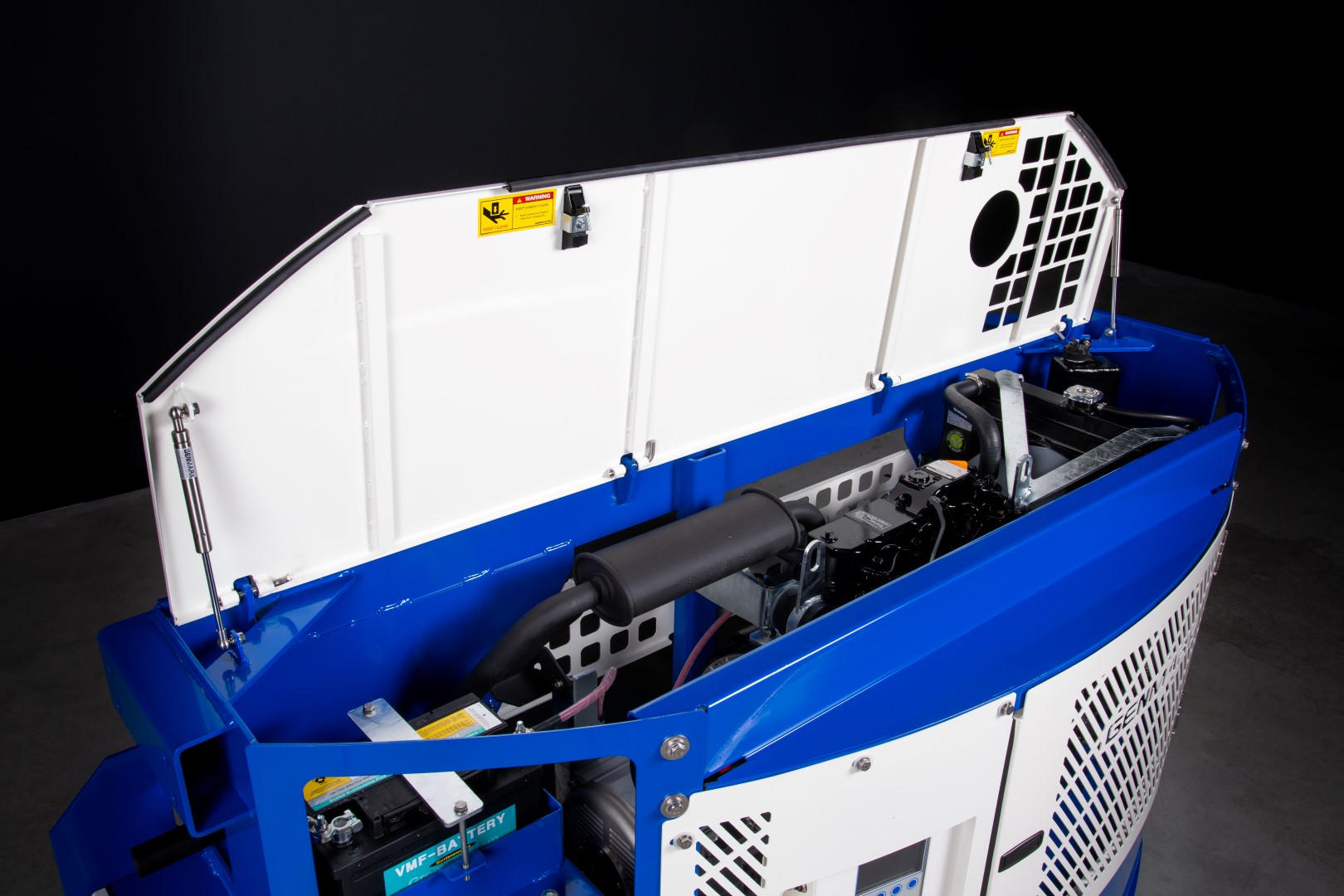

Thanks to the increased oil sump, containing 13,5 litres of oil (15W40), the maintenance interval is reduced to once every 1.000 hours, or once a year. The unit is designed in a way that the full service can be done without dismounting the unit from the chassis. The 4-cylinder Yanmar engine provides 18,9 kW which is equal to 25,7 hp at 1.500 rpm or 50 Hz, making our unit Stage 5 compliant.
